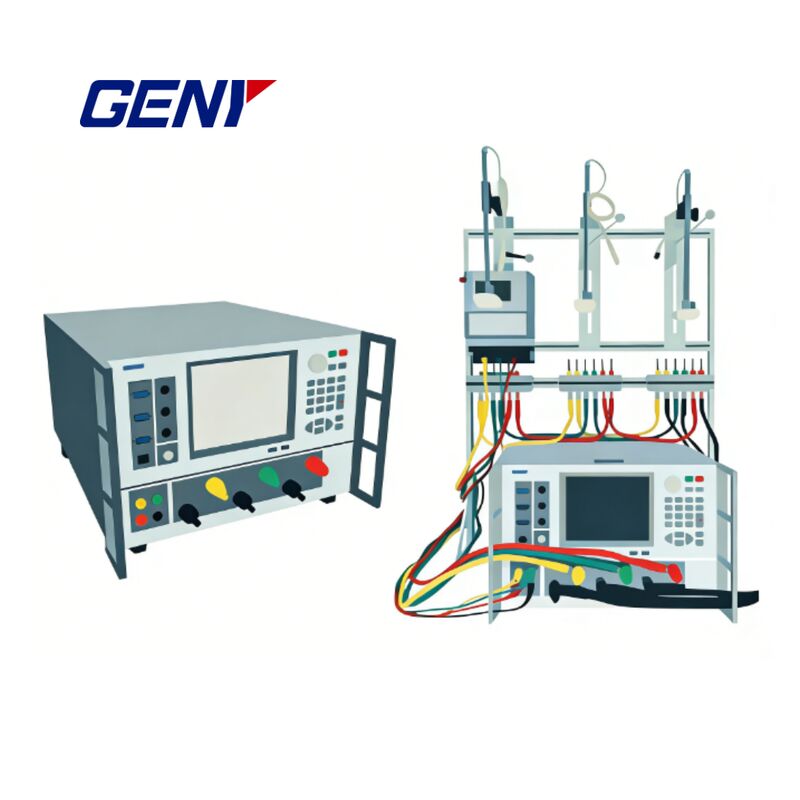

YC99T-5C Portable 3-Phase Meter Tester with Harmonic Output & Automated Calibration

YC99T-5C Portable 3-Phase Meter Tester with Harmonic Output & Automated Calibration

Merknaam:	GENY
Modelnummer:	YC99T-5C
MOQ:	1 st
Prijs:	Onderhandelbaar
Betalingsvoorwaarden:	L/C, T/T, D/P
Toeleveringsvermogen:	100/jaar

Detailinformatie

Productomschrijving

Detailinformatie

Plaats van herkomst:

China

Certificering:

ISO, CE

Document:

Spanningsbereik Spanningsbereik:

57.7V ~ 380V

Uitvoercapaciteit:

30VA maximaal/fase

Huidig bereik:

50mA 120A

Spanningsvoorziening:

110V/220V ±15% 50/60Hz±2Hz

Verpakking Details:

Multiplex kast

Levering vermogen:

100/jaar

Markeren:

Portable 3-phase meter tester

Meter tester with harmonic output

Automated calibration meter tester

Productomschrijving

YC99T-5C Portable 3-Phase Meter Tester with Harmonic Output & Automated Calibration

Product Overview

The YC99T-5C is a professional-grade portable 3-phase meter tester designed for comprehensive electrical meter calibration and testing. Featuring harmonic output capabilities and automated calibration processes, this instrument delivers precision and efficiency for industrial testing applications.

Key Features & Advantages

Accurate Calibration: Supports demand indication error, demand period error, time switching error, rate period energy indication error, and other multi-function tests. Built-in constant temperature crystal oscillator ensures precise verification of daily meter time errors.
Wide Compatibility: Supports DLT-645 (2007) communication protocol and works with 3P4W, 3P3W, and 1P2W meters.
Flexible Testing Modes: Active power and reactive power testing, as well as starting and creeping tests for comprehensive meter evaluation.
Harmonic Output Capability: Can function as a harmonic power source, providing stable harmonic signals for advanced testing needs.
User-Friendly Design: Front and rear panels are intuitively arranged for easy operation. Operable directly on the device or remotely via PC.
Automated Calibration Process: Intelligent automation handles preheating, starting, creeping, error measurement, influence tests, and quantity tests, reducing manual work and improving efficiency.
Data Management: Test data can be managed and archived via RS232 interface for convenient record-keeping and analysis.

Model Comparison

YC99T-5C vs YC99T-3C:

YC99T-5C offers similar functionality but with different voltage and current output suitable for medium-range calibration. YC99T-3C provides more voltage and current channels, ideal for large-scale multi-meter testing environments.

Technical Specifications

Voltage Source
Voltage Range	57.7V ~ 380V
Test Voltage Output (Phase-Neutral)	3* (0V - 450V)
Output Capacity	30VA max/phase
Resolution	0.01%
Accuracy	0.05%
Stability	0.01%/180s
Distortion Factor	< 0.2% for linear resistance load
Current Source
Current Range	50mA - 120A
Test Current Output	3*(1mA - 120A)
Output Capacity	100 VA max/phase@100A
Resolution	0.01%
Accuracy	0.05%
Stability	0.02%/180s
Distortion Factor	< 0.2% for linear resistance load
Phase Angle
Range	0 - 360°
Resolution	0.01°
Accuracy	0.05°
Frequency
Range	40Hz - 70Hz
Resolution	0.002Hz
Pulse Output
High Frequency Output (CH)	1.666×10⁵ Hz
Low Frequency Output (CL)	5×10⁻⁵×CH
Pulse Input
Input Channel	3
Input Frequency	Max. 20Hz
General Specifications
Voltage Supply	110V/220V ±15% 50/60Hz±2Hz
Ambient Temperature	-10°C - +40°C
Relative Humidity	35% - 85%
Dimensions (W×H×D)	445×180×680 mm
Weight	46 kg
