Three-Phase Stationary Power Source for Power Utilities and Meter Manufacturers

Merknaam:	GENY
Modelnummer:	YCSS-103
MOQ:	1
Prijs:	negotiate rates
Betalingsvoorwaarden:	T/t, l/c, d/p, t/t
Toeleveringsvermogen:	10 stuks/ 1 maand

Detailinformatie

Productomschrijving

Detailinformatie

Plaats van herkomst:

China

Certificering:

ISO, CE

Document:

Catalogue——Meter Test S...m..pdf

Ingangsspanning:

3 × 220 V / 380 V ±10% of aangepast

Frequentie:

50 / 60 Hz ±2 Hz

Omgevingstemperatuur:

–10 °C tot +40 °C

RELATIEVE VOCHTIGHEID:

35% – 85% (niet-condenserend)

Verpakking Details:

Multiplexkisten

Levering vermogen:

10 stuks/ 1 maand

Markeren:

three-phase stationary power source

stationary power source for utilities

power source for meter manufacturers

Productomschrijving

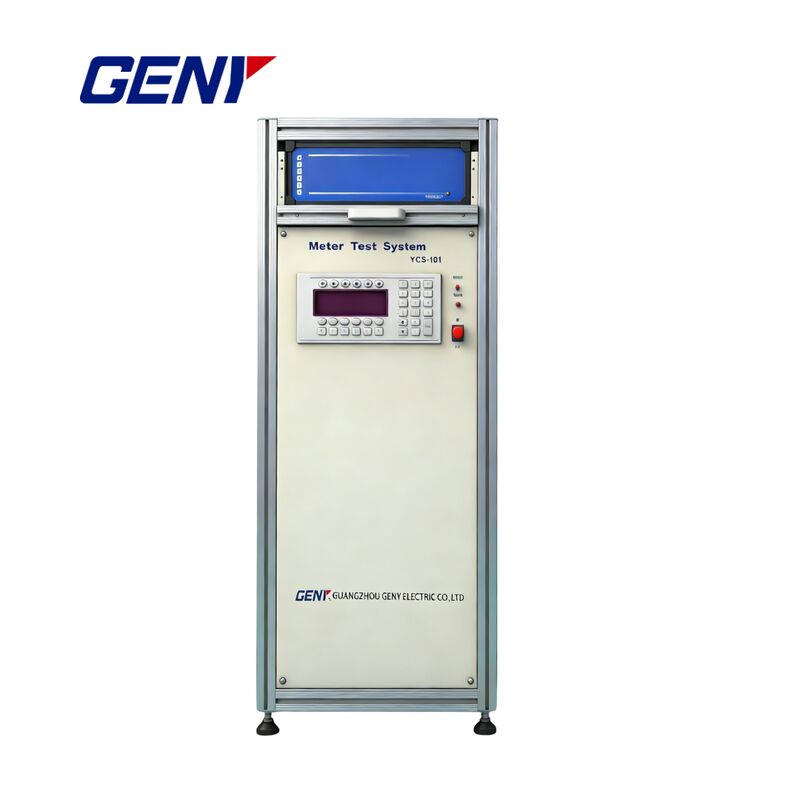

Three-Phase Stationary Power Source for Power Utilities and Meter Manufacturers

High-Accuracy Three-Phase Stationary Power Source

Professional-grade power source designed specifically for power utilities and meter manufacturers, delivering exceptional accuracy and reliability for testing applications.

Key Features

High accuracy with excellent long-term output stability
RS232 communication interface supporting automated operation
Optional built-in keyboard for convenient manual operation
Harmonics from 2nd to 21st order freely programmable in amplitude and phase angle
Rugged aluminum alloy enclosure: lightweight, high strength, and corrosion-resistant
User-friendly PC control software for easy operation and system integration
Comprehensive protection functions including overload, short-circuit voltage, and open-circuit current protection

Technical Specifications

Voltage Output

Parameter	Specification
Test Voltage (Phase-Neutral)	3 × (24 V - 288 V) or customized
Voltage Output Power	3 × 100 VA, 3 × 250 VA, 3 × 500 VA, 3 × 1000 VA
Resolution	Better than 0.01% of full-scale range
Setting Accuracy	Better than 0.05% of final range value
Stability	Better than 0.005%/h (integration time: 150 s)
Load Regulation (0 to Max Load)	< 0.01%
Distortion Factor	< 0.3% (linear resistive load)
Harmonics	2nd - 21st, freely programmable

Current Output

Parameter	Specification
Test Current Range	3 × (1 mA - 100 A)
Current Output Power	3 × 150 VA, 3 × 350 VA, 3 × 750 VA, 3 × 1500 VA
Resolution	Better than 0.01% of full-scale range
Setting Accuracy	Better than 0.05% of final range value
Stability	Better than 0.005%/h (integration time: 150 s)
Load Regulation (0 to Max Load)	< 0.01%
Distortion Factor	< 0.3% (linear resistive load)
Harmonics	2nd - 21st, freely programmable
