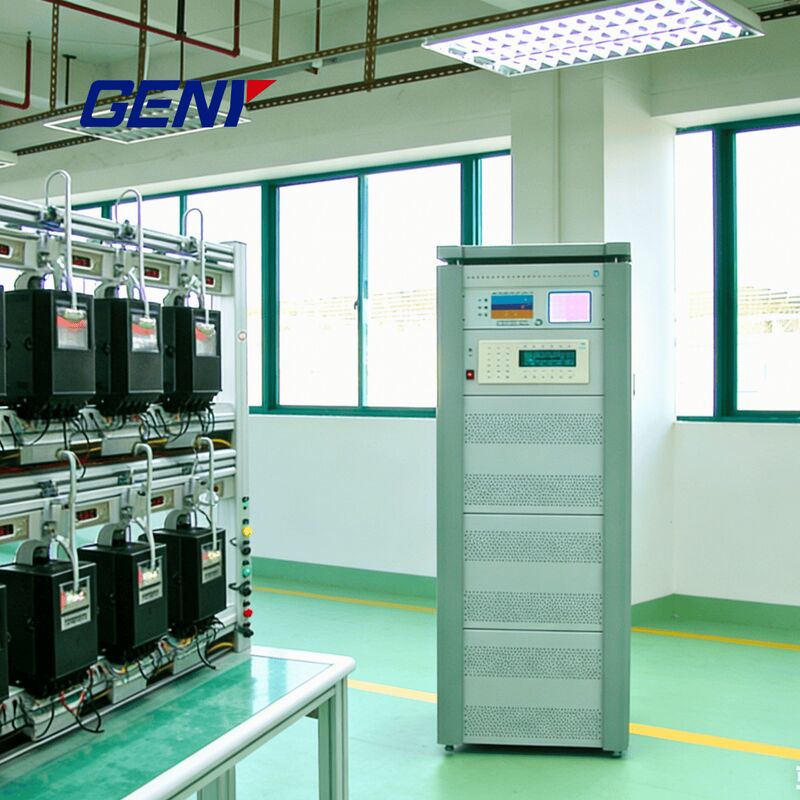

YCS-103 Three-Phase Power Source for Energy Meter Testing

Merknaam:	GENY
Modelnummer:	YCSS-103
MOQ:	1
Prijs:	negotiate rates
Betalingsvoorwaarden:	T/t, l/c, d/p, t/t
Toeleveringsvermogen:	10 stuks/ 1 maand

Detailinformatie

Productomschrijving

Detailinformatie

Plaats van herkomst:

China

Certificering:

ISO, CE

Document:

Catalogue——Meter Test S...m..pdf

Nauwkeurigheid instellen:

Beter dan 0,05% bij de definitieve waarde van het bereik

Stabiliteit:

Beter dan 0,005%/u (integratietijd 150s)

Vervormingsfactor:

Beter dan 0,3% voor lineaire weerstandsbelasting

Boventonen:

2nd Knot 21st gratis programmeerbaar

Spanningstoevoer:

3×220/380V±10% of aangepast 50/60Hz±2Hz

Test stroomuitgang:

3 × ((1 mA 100A)

Verpakking Details:

Multiplexkisten

Levering vermogen:

10 stuks/ 1 maand

Markeren:

three-phase power source for energy meters

stationary power source with warranty

energy meter testing power supply

Productomschrijving

YCS-103 Three-Phase Power Source for Energy Meter Testing

The YCS-103 Three-Phase Power Source is a high-precision, programmable power source designed for energy meter testing and calibration. It provides independent three-phase voltage and current outputs, making it suitable for testing both three-phase and single-phase electricity meters in laboratories, meter production lines, and test benches.

Key Features & Functions

Three independent voltage and current channels for accurate testing of three-phase and single-phase energy meters
High accuracy and long-term output stability ensures reliable and repeatable results for meter verification and calibration
Programmable harmonic output (2nd-41st harmonics) with adjustable harmonic amplitude and phase angle, compliant with modern meter testing standards
RS-232 communication interface enables fully automatic operation and easy integration with meter test bench systems
Optional built-in keyboard supports both manual control and PC-controlled operation
Rugged aluminum alloy housing provides lightweight, corrosion-resistant construction suitable for long-term industrial use
Comprehensive protection design with built-in protection against overload, voltage short-circuit, and current open-circuit
User-friendly control software with simple interface for fast setup, operation, and testing efficiency
CE certified and complies with EU health, safety, and EMC standards

Typical Applications
