Testbank voor vaste meters
Created with Pixso.

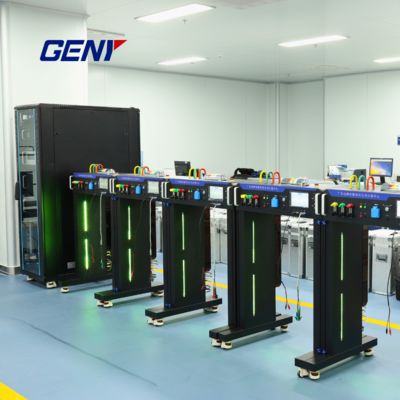

SmartCal Meter Testing Bench with 3 × 220V±10% Voltage, 3 × (24V – 300V) Test Voltage, and 3 × (0.3mA – 20A) Current Output

SmartCal Meter Testing Bench with 3 × 220V±10% Voltage, 3 × (24V – 300V) Test Voltage, and 3 × (0.3mA – 20A) Current Output

Merknaam: GENY
Modelnummer: YC1893D
MOQ: 1 pc's
Prijs: Onderhandelbaar
Betalingsvoorwaarden: L/c, t/t, d/p
Toeleveringsvermogen: 30 pc's per maand
Detailinformatie
Plaats van herkomst:
CHINA
Certificering:
ISO, CE
Spanning:
3 × 220V±10%
Testspanningsuitgang (fase-neutraal):
3 × (24V 300V)
Test stroomuitgang:
3 × (0,3mA 20A)
Vermogen van de huidige uitgang:
3 × 1500VA
Instelling van de nauwkeurigheid:
Beter dan 0,05% bij de definitieve waarde van het bereik
Stabiliteit:
Beter dan 0,005%/h (integratietijd 150 s)
Vervormingsfactor:
Beter dan 0,3% voor lineaire weerstandsbelasting
Verpakking Details:
multiplexkast
Levering vermogen:
30 pc's per maand
Markeren:

3 × 220V±10% SmartCal Meter Testing Bench

,

3 × (24V – 300V) Stationary Meter Test Bench

,

3 × (0.3mA – 20A) Meter Test System

Productomschrijving
SmartCal Meter Testing Bench Key Features Supports RS232 communication for parallel testing of smart meters Designed for Landis+Gyr 3-phase meter calibration and verification High-precision reference standard meter accuracy testing Pre-warming function for stable measurement conditions Built-in calibration terminals for test bench verification Automatic wiring and short-circuit protection for each station Custom QCD (Quick Connection Device) for Landis+Gyr meters PC software
