LPEP 385/20M Series Surge Protective Device with 385V Max Continuous Voltage 35mm Rail Mounting and Up≤1.8kV Protection Level

LPEP 385/20M Series Surge Protective Device with 385V Max Continuous Voltage 35mm Rail Mounting and Up≤1.8kV Protection Level

Merknaam:	GENY
Modelnummer:	LPEP 270/20G T3
MOQ:	1
Prijs:	negotiate rates
Betalingsvoorwaarden:	T/t, l/c, d/p, t/t
Toeleveringsvermogen:	10 stuks/ 1 maand

Detailinformatie

Productomschrijving

Detailinformatie

Plaats van herkomst:

CHINA

Certificering:

ISO, CE

Document:

Nominale spanning "U0":

Max. Continue spanning "UC":

Max. Afvoerstroom "IMAX":

Frequentie:

0-65Hz

Verpakking Details:

Multiplexkisten

Levering vermogen:

10 stuks/ 1 maand

Markeren:

385V Max Continuous Voltage Surge Protective Device

35mm Rail Mounting SPD

Up≤1.8kV Protection Level Lightning Protection Device

Productomschrijving

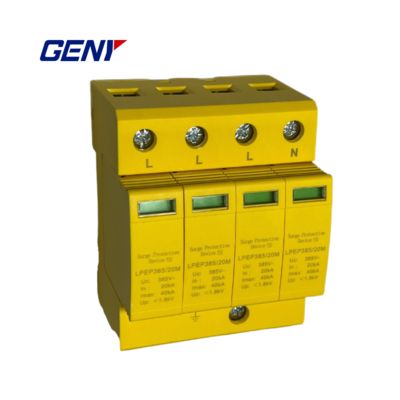

LPEP 385/20M Series Surge Protective Device

The LPEP 385/20M T2 Series Surge Protective Device provides reliable overvoltage and surge protection for power secondary systems, including distribution cabinets, feeder panels, control/monitoring panels, and UPS cabinets.

Features & Functions

High-quality phosphor bronze pins ensure minimal residual voltage and withstand repeated plugging
Advanced current-sharing technology for continuous and multiple lightning strikes
Fail-safe thermal cutoff mechanism prevents short circuits during faults
Compatible with online monitoring systems
V0 fire-rated housing with 35mm rail mounting for easy installation and maintenance

Operating Conditions

Temperature: -40°C to +60°C

Humidity: 30%-95% RH (at 25°C)

Atmospheric Pressure: ≥74.8 kPa (equivalent to 2500m altitude)

Specifications

Model	LPEP385/20M -4P/DL
Rated Voltage "U0"	220V
Max. Continuous Voltage "Uc"	385V
Nominal Discharge Current "In"(8/20uS)	20kA
Max. Discharge Current "Imax"	40kA
Protection Level "Up"	Up≤1.8kV
Response Time "tA"	≤25ns
Frequency	0-65Hz
Protection Model	Common Mode Protection
Power System	TT, TN
Dimensions	72mm90mm68mm
